Password management using YuBiKey, PGP/GnuPG and GIT

Posted by Sebastian Dehne on Friday, April 3, 2020

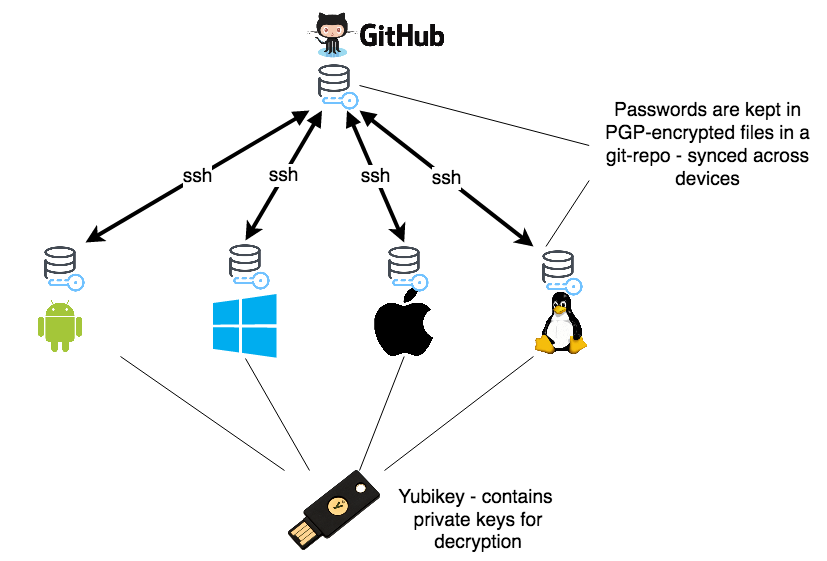

Overview

Basically, all passwords are kept in a one-password-per-file structure according to pass format which are encrypted using PGP (GnuPG) and version controlled using git. This git repository is kept in sync across devices using a remote git hosting service like GitHUB.

The nice part about this solution is that the private/secret keys, which are needed every time to access a password, are kept in a YuBiKey and therefore not stored and distributed on any of my devices. Without this YuBiKey, I cannot decrypt any of the encrypted password files which are distributed across my devices. That minimizes the risk of someone else getting access to those keys and it is not needed to type a passphrase each time to unlock the secret key, which is insecure because of the possibility of keylogging. It is also inconvenient to type a passphrase on smartphones.

The YuBiKey has a USB interface and NFC support - which makes it really convenient to be used together with smartphones. The YuBiKey has support for different protocols, and for this setup we will be using it as a PGP-smartcard. That provides for:

  • decryption of the password files
  • ssh authentication with the remote git service

There are multiple guides on how to setup this up already which I will just link to.

PGP key setup

First you need to setup your encryption keys (check out this video if you do not understand the concept og public/private keys yet).

Follow Guide to using YubiKey for GPG and SSH to set up your PGP-keys correctly on your YuBiKey.

Do not worry about the expire time of your keys (I used 6 months). You can quite easily extend the expire time later. You could also generate a complete new set of keys (using the same master key) and re-encrypt your passwords using the new key set. But be aware of the nature of git, which still has the files using the old keys in its history. You should get rid of that history when you rotate your keys.

Once you have setup your PGP keys on your YuBiKey and stored also a backup of them in a secure offline place, you can continue setting this up on your clients:

Windows + setting up the git repository

Install the following:

  • gpg4win
  • putty (use the installer to ensure everything we need is properly installed)
  • Git

Next you need to import your public keys into your local GnuPG installation. Open cmd and run:

$ gpg --import public.key.txt
gpg: keybox 'C:/Users/yourUsername/AppData/Roaming/gnupg/pubring.kbx' created
gpg: C:/Users/yourUsername/AppData/Roaming/gnupg/trustdb.gpg: trustdb created
gpg: key 4A77FE3D76CDDBF2: public key "Your Name <yourUserId@example.com>" imported
gpg: Total number processed: 1
gpg:               imported: 1

And verify you have them imported using:

$ gpg --list-keys
C:/Users/yourUsername/AppData/Roaming/gnupg/pubring.kbx
------------------------------------------------
pub   rsa4096 2020-03-29 [SC]
      FD4537161A3AB6D4578C6D134A77FE3D76CDDBF2
uid           [ultimate] Your Name <yourUserId@example.com>
sub   rsa4096 2020-03-29 [S] [expires: 2020-10-25]
sub   rsa4096 2020-03-29 [E] [expires: 2020-10-25]
sub   rsa4096 2020-03-29 [A] [expires: 2020-10-25]

But gpg does not have your private keys yet (which are needed for decryption), so this command should give an empty output:

$ gpg --list-secret-keys

So far so good. now we need to tell gpg that the private keys are on the YuBiKey. Insert the YuBiKey into one of your USB ports and type:

$ gpg --card-status
Reader ...........: Yubico YubiKey OTP FIDO CCID 0
Application ID ...: D2760001240102010006101555010000
Application type .: OpenPGP
Version ..........: 2.1
Manufacturer .....: Yubico
Serial number ....: 10155501
Name of cardholder: Your Name
Language prefs ...: en
Salutation .......:
URL of public key : [not set]
Login data .......: yourUserId@example.com
Signature PIN ....: not forced
Key attributes ...: rsa4096 rsa4096 rsa4096
Max. PIN lengths .: 127 127 127
PIN retry counter : 3 0 3
Signature counter : 2
Signature key ....: 2465 49CD 4E79 EFB7 828E  CCCE 11BF 0B72 4E09 C10F
      created ....: 2020-03-29 09:14:38
Encryption key....: BA38 748D 161F CA2D 008F  D8EF 49D3 212A 99F7 183F
      created ....: 2020-03-29 09:16:30
Authentication key: 88CF C223 9A0E 3DFA 09CE  643C F1F4 D8F8 675E E2CA
      created ....: 2020-03-29 09:22:55
General key info..: sub  rsa4096/11BF0B724E09C10F 2020-03-29 Your Name <yourUserId@example.com>
sec#  rsa4096/4A77FE3D76CDDBF2  created: 2020-03-29  expires: never
ssb>  rsa4096/11BF0B724E09C10F  created: 2020-03-29  expires: 2020-10-25
                                card-no: 0006 10155501
ssb>  rsa4096/49D3212A99F7183F  created: 2020-03-29  expires: 2020-10-25
                                card-no: 0006 10155501
ssb>  rsa4096/F1F4D8F8675EE2CA  created: 2020-03-29  expires: 2020-10-25
                                card-no: 0006 10155501

You should see your YuBiKey detected as a GPG-smartcard and you will also see your 3 private keys as shown above. Now try to list your private keys again:

$ gpg --list-secret-keys
C:/Users/yourUsername/AppData/Roaming/gnupg/pubring.kbx
------------------------------------------------
sec#  rsa4096 2020-03-29 [SC]
      FD4537161A3AB6D4578C6D134A77FE3D76CDDBF2
uid           [ unknown] Your Name <yourUserId@example.com>
ssb>  rsa4096 2020-03-29 [S] [expires: 2020-10-25]
ssb>  rsa4096 2020-03-29 [E] [expires: 2020-10-25]
ssb>  rsa4096 2020-03-29 [A] [expires: 2020-10-25]

You should now see that gpg knows that the secret keys which belong to your public keys are on the YuBiKey (note the > character, which means the secret key is on the smartcard. # behind the masterkey means that the key is missing - which is correct. gpg should not have access to the secret master key).

SSH authentication

Next step is to setup ssh authentication. We are going to use PuTTY for that.

The git-for-windows installer also installs a native OpenSSH client on windows. But I was not able to make this work with GPG. Therefore I switched to using Putty which works fine.

Normally, PuTTY uses it own ssh-agent called pageant.exe. But in order to make PuTTY work together with GPG, we are going to replace pageant.exe and let PuTTY connect to the gpg-agent instead.

Configure the gpg-agent to act as the putty agent by using the following %APPDATA%\gnupg\gpg-agent.conf:

 enable-putty-support
 enable-ssh-support
 default-cache-ttl 60
 max-cache-ttl 120
 pinentry-program "C:\Program Files (x86)\Gpg4win\bin\pinentry.exe"

Now restart the gpg-agent:

$ gpgconf --kill gpg-agent
$ gpg-connect-agent /bye
gpg-connect-agent: no running gpg-agent - starting 'C:\Program Files (x86)\Gpg4win\..\GnuPG\bin\gpg-agent.exe'
gpg-connect-agent: waiting for the agent to come up ... (5s)
gpg-connect-agent: connection to agent established

Now everything should be setup correctly. Extract your ssh public key as follows:

$ gpg --export-ssh-key yourUserId@example.com
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAACAQCzJLTKb4foiyAMQWsnviiSKrEoVVZn8rGKScLZid8hXyKws7D7+7uudEMG7H1E05eLtOM68tp7G
TjeoesY9pwSOtw3Jc10mM3w1XxkLR3UqpBbFbMRUAelL+Q9T2VmWMU35aBrXGuA2Gbt30qZjVUV6g/AuFY+euRQJgFNzbzQW6PTn16gEBqF/d6/+U
o9j/aYisvpQTPf73ADQEFdqvwLKphLURnK7XfNtAHLuw== openpgp:0x675EE2CA

Add this key to your GitHUB account under SSH-keys. You can also use this key for any other ssh service, just copy it to your remote ssh-server into the file .ssh/authorized_keys.

Next step is to tell the windows git client to use PuTTY as its ssh client. Do this by setting the GIT_SSH env variable to pling.exe.

$ SET GIT_SSH="C:\Program Files\PuTTY\plink.exe"

Make it permament by adding it to your windows environment. Right-click “Your Computer” -> Advanced systemsettings -> Environment variables and restart your shell.

You should now be able to pull/push your git repository using git and your YuBiKey:

$ cd password-store
$ git pull

And you will be asked for your pin:

You are done. You can use a GUI tool such as QtPass if you’d like.

Mac

Assuming this is the first time you are using GPG on your mac. First you need to install GnuPG:

$ brew install gnupg2 pinentry-mac

(Or use any other method to install it).

Next, import your public key:

$ gpg --import public.key.txt
gpg: directory '/Users/yourUsername/.gnupg' created
gpg: keybox '/Users/yourUsername/.gnupg/pubring.kbx' created
gpg: /Users/yourUsername/.gnupg/trustdb.gpg: trustdb created
gpg: key 4A77FE3D76CDDBF2: public key "Your Name <yourUserId@example.com>" imported
gpg: Total number processed: 1
gpg:               imported: 1

And verify you have them imported using:

$ gpg --list-keys
/Users/yourUsername/.gnupg/pubring.kbx
-------------------------------
pub   rsa4096 2020-03-29 [SC]
      FD4537161A3AB6D4578C6D134A77FE3D76CDDBF2
uid           [ unknown] Your Name <yourUserId@example.com>
sub   rsa4096 2020-03-29 [S] [expires: 2020-10-25]
sub   rsa4096 2020-03-29 [E] [expires: 2020-10-25]
sub   rsa4096 2020-03-29 [A] [expires: 2020-10-25]

But gpg does not have your private keys yet (which are needed for decryption), so this command should give an empty output:

$ gpg --list-secret-keys

So far so good. now we need to tell gpg that the private keys are on the YuBiKey. Insert the YuBiKey into one of your USB ports and type:

$ gpg --card-status
Reader ...........: Yubico YubiKey OTP FIDO CCID 0
Application ID ...: D2760001240102010006101555010000
Application type .: OpenPGP
Version ..........: 2.1
Manufacturer .....: Yubico
Serial number ....: 10155501
Name of cardholder: Your Name
Language prefs ...: en
Salutation .......:
URL of public key : [not set]
Login data .......: yourUserId@example.com
Signature PIN ....: not forced
Key attributes ...: rsa4096 rsa4096 rsa4096
Max. PIN lengths .: 127 127 127
PIN retry counter : 3 0 3
Signature counter : 2
Signature key ....: 2465 49CD 4E79 EFB7 828E  CCCE 11BF 0B72 4E09 C10F
      created ....: 2020-03-29 09:14:38
Encryption key....: BA38 748D 161F CA2D 008F  D8EF 49D3 212A 99F7 183F
      created ....: 2020-03-29 09:16:30
Authentication key: 88CF C223 9A0E 3DFA 09CE  643C F1F4 D8F8 675E E2CA
      created ....: 2020-03-29 09:22:55
General key info..: sub  rsa4096/11BF0B724E09C10F 2020-03-29 Your Name <yourUserId@example.com>
sec#  rsa4096/4A77FE3D76CDDBF2  created: 2020-03-29  expires: never
ssb>  rsa4096/11BF0B724E09C10F  created: 2020-03-29  expires: 2020-10-25
                                card-no: 0006 10155501
ssb>  rsa4096/49D3212A99F7183F  created: 2020-03-29  expires: 2020-10-25
                                card-no: 0006 10155501
ssb>  rsa4096/F1F4D8F8675EE2CA  created: 2020-03-29  expires: 2020-10-25
                                card-no: 0006 10155501

You should see your YuBiKey detected as a GPG-smartcard and you will also see your 3 private keys as shown above. Now try to list your private keys again:

$ gpg --list-secret-keys
/Users/yourUsername/.gnupg/pubring.kbx
------------------------------------------------
sec#  rsa4096 2020-03-29 [SC]
      FD4537161A3AB6D4578C6D134A77FE3D76CDDBF2
uid           [ unknown] Your Name <yourUserId@example.com>
ssb>  rsa4096 2020-03-29 [S] [expires: 2020-10-25]
ssb>  rsa4096 2020-03-29 [E] [expires: 2020-10-25]
ssb>  rsa4096 2020-03-29 [A] [expires: 2020-10-25]

You should now see that gpg knows that the secret keys which belong to your public keys are on the YuBiKey (note the > character, which means the secret key is on the smartcard. # behind the masterkey means that the key is missing - which is correct. gpg should not have access to the secret master key).

SSH authentication

Next step is to setup ssh authentication. Normally, the ssh client will connect to the ssh-agent, but in order to make ssh authentication work together with GPG, we need to make ssh connect to the gpg-agent instead. This can be done by ensuring the ssh-agent is not running:

$ killall ssh-agent

Next, configure the gpg-agent by placing the following content into the file /Users/yourUsername/.gnupg/gpg-agent.conf

enable-ssh-support
default-cache-ttl 60
max-cache-ttl 120
pinentry-program /usr/local/bin/pinentry-mac

Now restart the gpg-agent:

$ killall gpg-agent
$ gpg-connect-agent /bye
gpg-connect-agent: no running gpg-agent - starting '/usr/local/Cellar/gnupg/2.2.20/bin/gpg-agent'
gpg-connect-agent: waiting for the agent to come up ... (5s)
gpg-connect-agent: connection to agent established

Now the gpg-agent is ready, all we need to do is to tell ssh to use the gpg-agent instead of the default ssh-agent. That is done by setting the environment variable SSH_AUTH_SOCK as follows:

$ export SSH_AUTH_SOCK=/Users/yourUsername/.gnupg/S.gpg-agent.ssh

Make this permanent by placing this command in .bash_profile

Done. You should now be able to git pull and git push your password repository using your YuBiKey.

Android

OpenKeyChain

Download and install OpenKeyChain on your phone and import your public key. Once your public key is imported you need to verify your key: Open the OpenKeyChain app and hold your YuBiKey to the backside of your phone. You should see that the OpenKeyChain app communicates with the YuBiKey using NFC and imports also information about that your YuBiKey holds the private keys for those public keys. Now the app knows that when it needs to access the private keys, it needs to ask for you to hold the YuBiKey against the backside of your phone.

Android Password Store

Now you can install the password manager store app

Open settings and configure git server settings:

  • ssh as protocol
  • username: git
  • server URL: github.com
  • repo path: <your-github-user-name>/password-store
  • Authentication mode: OpenKeyChain

In the settings menu under Crypto, you should also select OpenKeyChain and select also your key ID.

Assuming you have added your public ssh-key to your GitHUB account as explained above, you should now be able to clone the repo, view passwords, make changes and push the repo using your YuBiKey on your Android phone.
